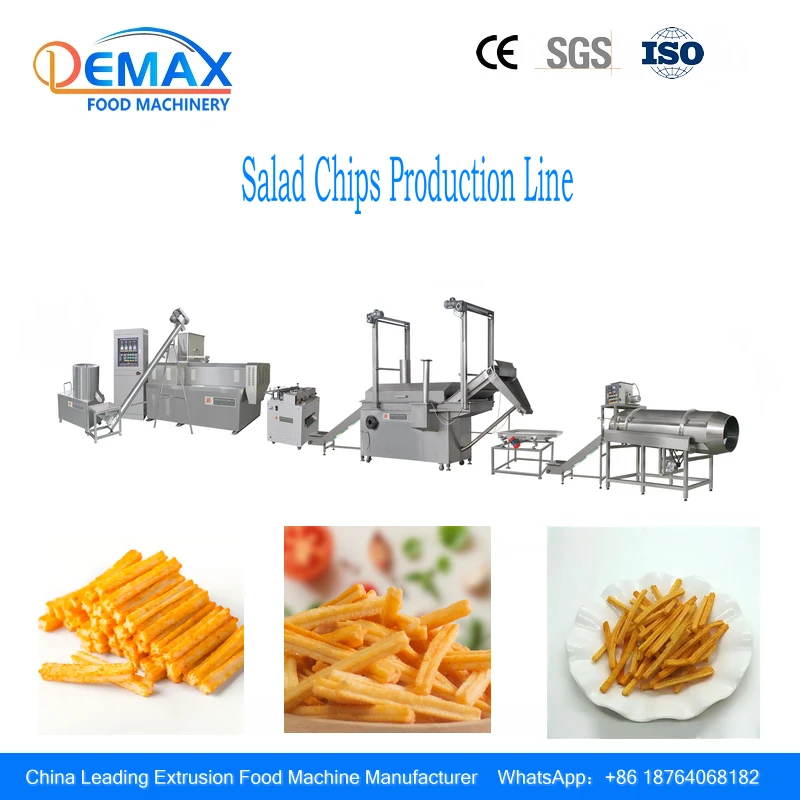

Salad Sticks Extruder Machine

BRIEF INTRODUCTION OF Salad Sticks Extruder Machine

The Salad Sticks Extruder Machine is the core host equipment of the complete salad-style fried snack production line. It adopts mature twin-screw extrusion technology to replace the traditional snack processing technique, accomplishing raw material mixing, high-temperature gelatinization and puffing processing for grain powder inside the extruder barrel. Well-puffed semi-finished blanks are transported to subsequent forming, cutting, frying and seasoning stations to finally produce crispy salad sticks and salad-series puffed snacks.

This extruder host can be supplied as standalone unit or matched with complete set of auxiliary machines to build full production workshop. Two mature specifications SLG65-III and SLG70-II cover medium and large production output requirements. The inner screw components are manufactured from high-strength alloy steel, realizing stable and even material curing and puffing performance. Equipped with frequency-conversion speed-regulating system, operators can adjust production output flexibly. Cooperated with different forming moulds, shaping and cutting assemblies, one extruder host can support multiple kinds of salad snack production.

Raw Materials & Finished Products

Raw materials: corn flour, rice flour, wheat flour and different proportions of mixed grain powder, which are fully mixed, heated and gelatinized inside Salad Sticks Extruder Machine.

Finished semi-finished blanks: After extrusion and follow-up forming & cutting process, it can produce strip-shaped salad blanks, thin chip blanks and other multi-profile puffed snack blanks for subsequent deep-frying processing.

Main Features

Twin-screw co-rotating extrusion structure, high-efficiency grain material mixing and thermal gelatinization, guarantee consistent puffing performance for semi-finished snack blanks.

Alloy steel screw with special surface treatment craft, high wear-resistance and long service life, modular assembly supports quick disassembly and flexible combination.

Frequency-conversion control for feeding system and main-motor rotating speed, flexible adjustment for production capacity and material curing degree according to craft requirements.

Independent forced lubrication system for gearbox, effectively reduce mechanical wear during long-time non-stop continuous industrial running.

Multi-point auto temperature-control system for extruder barrel; each heating zone can set temperature independently, convenient for formula debugging and product trial-production.

Self-cleaning function, operators can clean inner barrel without full disassembly when switching different raw-material formulas.

Strong raw-material compatibility, adapt to single grain powder and various compound mixed-powder formulas for diversified salad snack development.

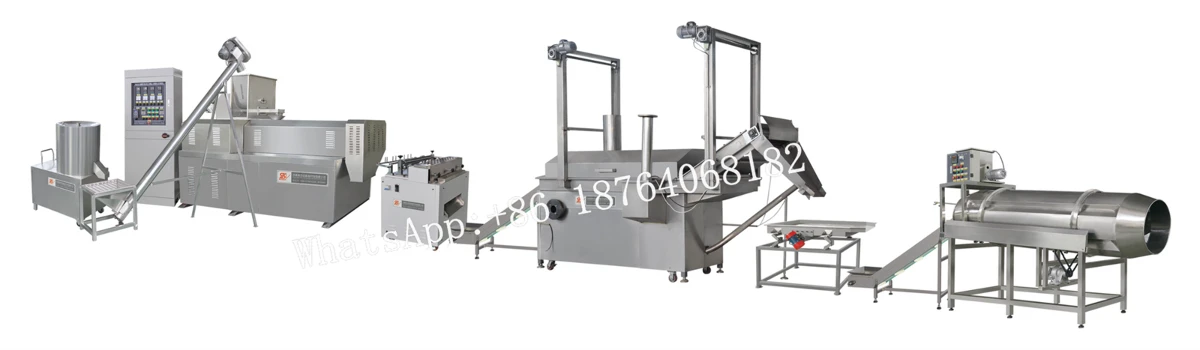

Complete Production Process (Based on Salad Sticks Extruder Machine Host)Mixer → Screw conveyor → Salad Sticks Extruder Machine → Forming Machine → Cutting Machine → Fryer → Flavor machine → Cooling conveyor → Packing unit

Technical Parameters

Sample Description

The semi-finished blanks extruded from Salad Sticks Extruder Machine own uniform puffing and gelatinization effect. After forming, cutting, frying and seasoning procedures, final salad-series snacks achieve crispy texture and good mouth-feel. Different snack shapes and sizes can be completed by replacing forming moulds, forming machine and cutting components on post-processing station.

Pre-sales & After-sales ServicePre-sales Service

Provide host-only scheme or full-line configuration scheme according to customer's actual factory demand.

Offer craft suggestion for different raw-material formulas of salad sticks and salad-style fried snacks.

Support test-run video sending and finished snack sample provision. Every extruder host will go through strict running inspection before factory delivery.

After-sales Service

One-year warranty for Salad Sticks Extruder Machine main host; related wearing spare parts are supplied together with shipment.

English manual focusing on extruder operation, screw disassembly, equipment cleaning and daily maintenance guidance.

Overseas engineer on-site commissioning and worker technical training service is available upon request.

Long-term spare-parts supply and remote technical consultation via email and telephone.

We look forward to cooperating with you and providing you with the highest quality food processing machinery and equipment. If you have any needs or questions, please feel free to contact us.

About Demax Food Machinery

Demax is a professional manufacturer specialized in single‑screw & twin‑screw food extruder equipment.

30‑plus years manufacturing & R&D experience for extrusion food processing machinery

Factory area: 35,000 square meters

Products exported to over 100+ countries and regions worldwide

Complete pre‑sales technical consulting and global after‑sales support team

Main product portfolio:Pet Food Production Line, Breakfast Cereals(Corn Flakes) Line, Textured Soya Protein(TVP) Line, Bread Crumbs Line, Bugles & Doritos Snack Line, Crispy Salad Chips Snack Line and other extrusion food processing solutions.

We support custom‑tailored production‑line layout design, optional SS201 / SS304 / SS316 food‑grade material selection, overseas engineer installation and operator training service for worldwide clients.
